Self-Cleaning Aquatrainer

17fX Swim Spa


The AquaTrainer 17fX swim spa has two multi-hydrotherapy massage seats making it a pool, hot tub and aquatic gym all-in-one. But has the added output of our two high performance adjustable wide stream swim jets and one core stream jet. This allows you to adjust the current from a gentle front crawl to a 1:02 min. hundred meter swim pace, a challenge for even a competitive swimmer.

  • 1 - 4HP Evergreen Single Speed Pump
  • 2 - 5 HP Aqua Boost Swim Pumps
  • 2 - High Performance Wide Stream AquaFlo Swim Jets
  • 1 - High Flow Corestream Swim Jet
  • 2 - 4Kw Heaters
  • 1 - HydroClean Filtration Pump
  • 2 Persons Hydrotherapy Seating
  • 20 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
210" x 93"
533 cm x 236.2 cm

Height
49"
124.5 cm

Volume
2181 US gallons
8257 L

Weight Full
20,830 lbs
9,451 Kg

Weight Empty
2,627 lbs
1,194 Kg

HydroGuide - Self-Clean Aquatrainer 17' fX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.
Ambient Outdoor Temperature
Monthly Cost
LOW: 45F / 7C
$58.60
HIGH: 75F/24C
$26.46
North American Wattage / 100 Gallons: 15.50 W





2019-17fX-swim-spa-aquatrainer


May not be exactly as shown.

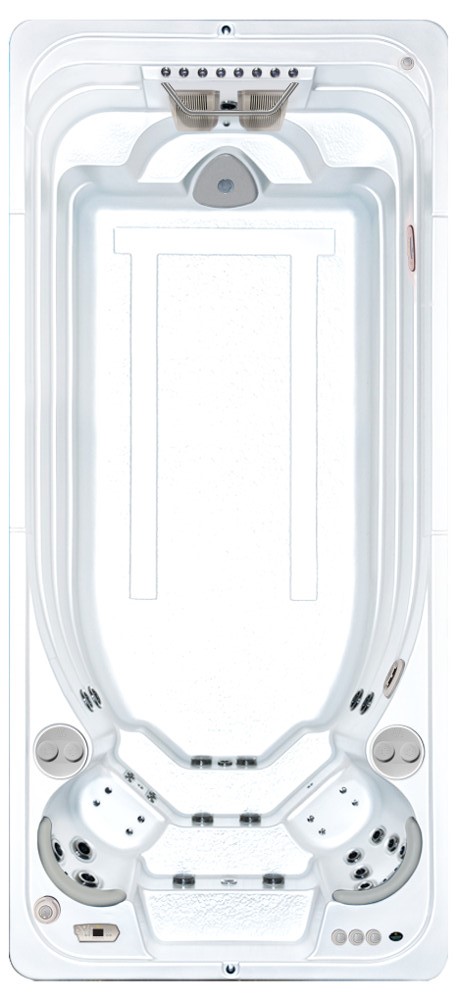

Spec & Jet Diagram





Jets and Plumbing
. 3HP Evergreen Single Speed Pump (19Fx is a 4HP)
--
. 5HP Aqua Boost Swim Pump2
. HydroClean Plus Filtration Pump
. Slitstream Bouyancy Jet
. Adjustable Thigh Jets4
. Total Stainless Steel Hydro Flow Hydrotherapy Jets20

Electronics
. 4 KW Heater(s)
--
2
. Isolation Valves and a programmable Filtration Timer

Fitness
. Aquacord Anchor for Body Board and Tether
--

Standard Features
. Automatic Chemical Feeder
--
. Steel Support Package
. LED Light2
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Hard Cover
. Self Clean filtration System
. Swimspa Water Watch
. Insulated Plastic Base
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control
. 24in Exercise Bar

Warranty
. 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)
--

Cabinet
. Factory Installed Cabinet & Frame
--

Swim
. AquaPro Current Control
--
. V Twin Swim Jet2

Design
. Three Stage Acrylic Polymer Shell
--

Spa Capacity
. Seating (Persons)
--
2

Model Specifications
. Height (inches)
--
49
. Height (cm)124.5
. Shell Dimensions (inches)17ft6inx7ft9in
. Shell Dimensions (cm)533.4x236.2
. Volume (US gallons)2,181
. Volume (Litres)8,257
. Weight Full (Lbs)20830
. Weight Full (Kg)9451
. Weight Empty (Lbs)2627
. Weight Empty (Kg)1192


UPGRADE OPTIONS

. 2 Extra LEDs & Northern Lights



. 4 Tier Aqua Step



. 48" Stainless Steel Exercise Bar



. 50 or 60 Amp GFCI with Subpanel, Deluxe Starter Kit, EZ-Ultra Pure Ozone System, Summer Cover with Tie Down



. 60 Amp GFCI Including Subpanel



. Aqua Fitness Package



. Aqua Rowing Kit



. Auxillary Heating System By-Pass Loop



. Bellagio Package DTAX: Bellagio HydroFalls, Northern Lights plus 2 LED Lights



. Bi Fold Cover Option (with cabinet only)



. Black Cherry Cabinet Premium Upgrade



. Covana LEGEND Automated Cover - Slate/Platinum or Mocha/Latte



. Covana LEGEND Automated Cover - Slate/White or Mocha/White



. Covana LEGEND Automated Cover Installation



. Covana LEGEND Battery back up Pack 24V



. Covana LEGEND Secondary Escape Hatch Slate/Platinum or Mocha/Latte



. Covana LEGEND Secondary Escape Hatch Slate/White or Mocha/White



. Covana LEGEND Solar Panel - Battery Charging System 24V



. Delete insulating five section cover



. Deluxe Water Care Kit with Pool Marvel



. Dream Scents on demand



. EZ-Ultra Pure Ozone System



. HydroClear PureWater System



. HydroFlex Air Therapy System



. Hydropool Surround Sound (Only Available with Cabinet)



. I Command System



. Replace AquaPro with Aquaflex Control



. Replace Cabinet add Solid State frame



. Rollaway Cover - 17ft



. Rollaway Cover Bracket (Cover shelf)



. Safe T Rail - Textured Black Aluminum



. Southern Lights (with cabinet only)



. Summer Cover with Tie Downs



. Swimspa Water Watch
