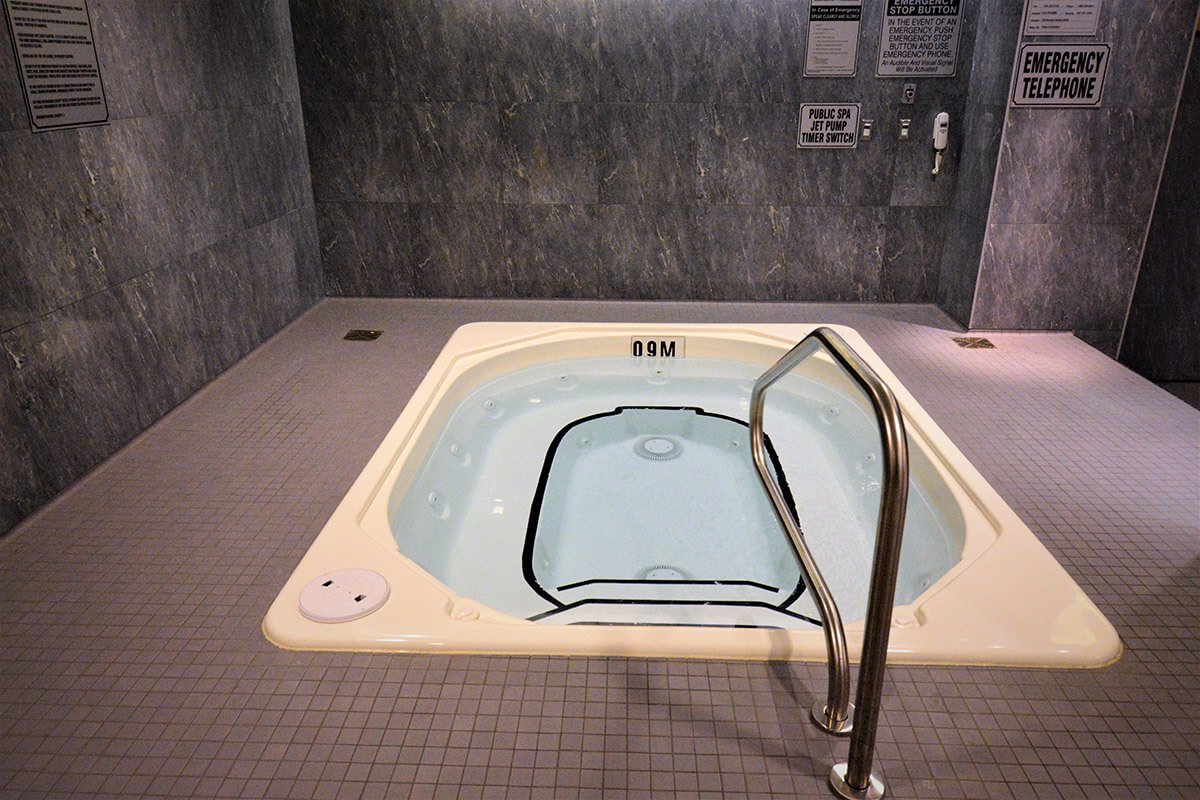

Commercial Hot Tub ( MODEL H-1100C )

Commercial Hot Tub ( MODEL H-1100C )

MODEL H-1100C



VGB Approved

92" x 120" x 42.5"
233cm x 305cm x 108cm

9-10 Persons

Available as a
Pre-Plumbed Acrylic Shell
or with a
Complete Mechanical Equipment Package


imageDownload

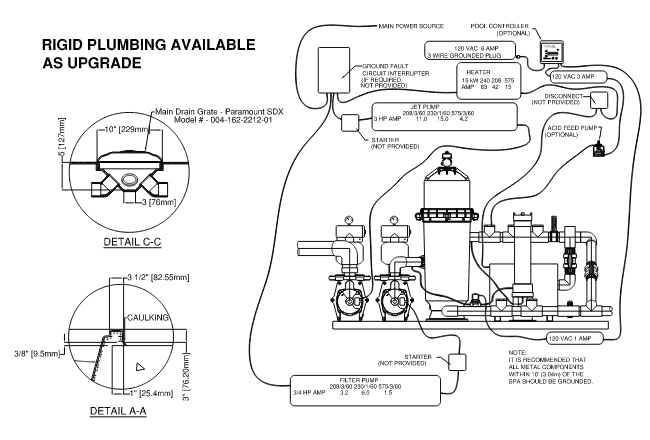

Complete Schematic VGB Version (PDF)









Commercial Hot Tub

Dimensions

120 x 92 x 42.5 (inches)

305 x 233 x 108 (cm)

Seats 9 - 11 people

Mechanical Equipment

Standard Single phase mechanical equipment package featuring 3/4 hp circulation pump with strainer basket, 2 hp jet pump with strainer, 15 kw electric heater, 200 sq. ft. cartridge filter, brominator/chlorinator, 2 inline thermometers, flow meter, wall mounted jet pump control timer. Pre-plumbed shell with 11 large jets, full sized N.S.F. listed skimmer, water level controller

All Spas sold into the United States of America are compliant with the Virginia Graeme Baker Pool & Spa Safety Act

Options

  • 3 phase mechanical equipment package, 208 & 575 Volt

  • Floating cover

  • Locking insulating hardcover

  • 24” sand filter substitution (c/w sand)

  • 36” stainless steel deck mounted handrail c/w anchors

  • AV Alarm

  • Emergency pump stop switch

  • Safety sign

  • Waterline Tile

Size
120" x 92" / 304 x 233 cm

Height
40.75"  103 cm c/w sump

Volume
@650 US gallons / 2457 Litres

Weight Full
7812lbs / 3550 kg

Weight Empty
750 lbs / 340 kg

Seating
9-11 persons (some jurisdictions may reduce spa user capacity)

Special Features
Self cleaning bottom suction drains, Commercially approved skimmer, Large safety access steps.

Dimenions may differ. Exact measurment should be obtained from purchase unit.
