Commercial Hot Tub

Commercial Hot Tub

MODEL H-1200C

Commercial Hot Tub


VGB Approved

92" x 144" x 42.5"
233cm x 366cm x 108cm

11-12 Persons

Available as a
Pre-Plumbed Acrylic Shell
or with a
Complete Mechanical Equipment Package


imagesDownload

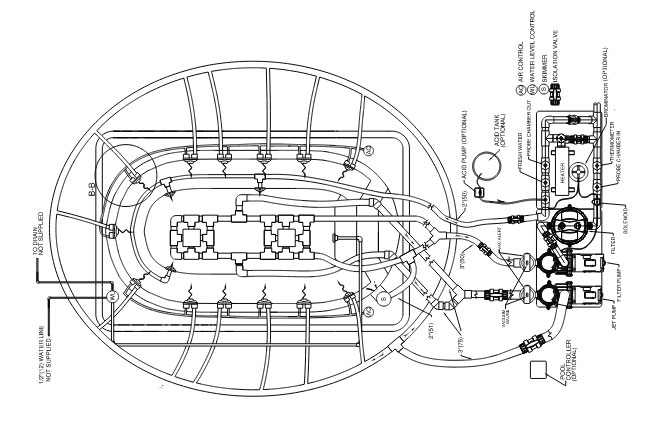

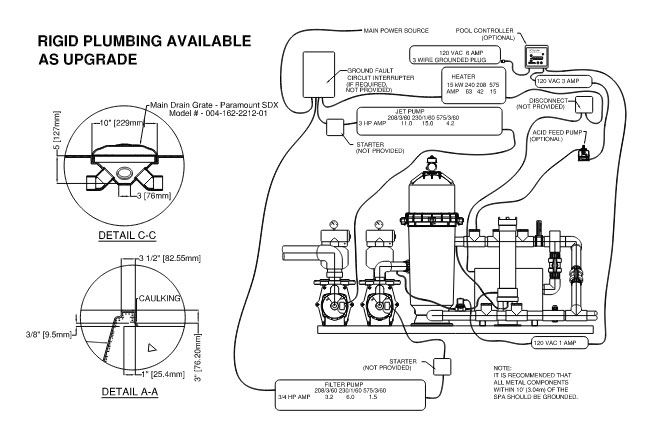

Complete Schematic VGB Version (PDF)









Commercial Hot Tub

Dimensions

144 x 92 x 42.5 (inches)

366 x 233 x 108 (cm)

Seats 10 - 12 people ( depending on local building codes)

Mechanical Equipment

Standard Single phase mechanical equipment package featuring 3/4 hp circulation pump with strainer basket, 2 hp jet pump with strainer, 15 kw electric heater, 200 sq. ft. cartridge filter, brominator/chlorinator, 2 inline thermometers, flow meter, wall mounted jet pump control timer.Pre-plumbed shell with 9 large jets, 4 medium jets, full sized N.S.F. listed skimmer, water level controller

All Spas sold into the United States of America are compliant with the Virginia Graeme Baker Pool & Spa Safety Act

Options

  • 3 phase mechanical equipment package, 208 & 575 Volt

  • Floating cover

  • Locking insulating hardcover

  • 30” sand filter substitution (c/w sand)

  • 36” stainless steel deck mounted handrail c/w anchors

  • AV Alarm

  • Emergency pump stop switch

  • Safety sign

  • Waterline Tile

Size
144" x 92" / 366 x 233 cm

Height
42.5"  108 cm c/w sump

Volume
@866 US gallons / 3275 Litres

Weight Full
10143 lbs / 4610 kg

Weight Empty
1000 lbs / 455 kg

Seating
10-12 persons (some jurisdictions may reduce spa user capacity)

Special Features
Self cleaning bottom suction drains, Commercially approved skimmer, Large safety access steps.

Dimenions may differ. Exact measurment should be obtained from purchase unit.
