Self-Cleaning AquaSport 19' fX Swim Spa

Self-Cleaning AquaSport 19' fX Swim Spa

Self-Cleaning AquaSport 19' fX Swim Spa


The AquaSport 19 fX swim spa has four full body massage hydrotherapy seats with dual zones that deliver the flexibility, fun and benefits for the whole family. This swim spa is also a fiberglass reinforced acrylic one piece mini-pool that provides you the ultimate room to swim, jog, exercise or just play with the entire family. The one thing we can't mention enough of is that this model and all of our swim spas come with our exclusive self-cleaning system, you won't find another swim spa like ours anywhere.

  • 1 - 4HP Evergreen Single Speed Pump
  • 1 - 5 HP Aqua Boost Swim Pump
  • 2 - High Flow Corestream Swim Jets
  • 1 - Buoyancy Jet
  • 1 - 4Kw Heater (optional upgrade to 2nd 4kw heater)
  • 1 - HydroClean Filtration Pump
  • 4 Persons Hydrotherapy Seating
  • 19 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
220" x 93"
558 cm x 236.2 cm

Height
53"
135 cm

Volume
2439 US gallons
9233 L

Weight Full
23,382 lbs
10,609 Kg

Weight Empty
3,028 lbs
1,376 Kg


HydroGuide - Self-Clean AquaSport 19' fX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.
Ambient Outdoor Temperature
Monthly Cost
LOW: 45F / 7C
$60.88
HIGH: 75F/24C
$27.49
North American Wattage / 100 Gallons: 15.50 W

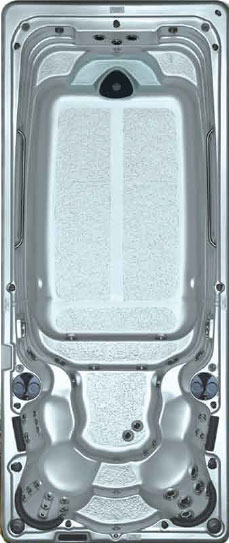

Self-Cleaning Aquasport 19' fx swim spa
May not be exactly as shown.

Spec & Jet Diagram





Jets and Plumbing
. 3HP Evergreen Single Speed Pump (19Fx is a 4HP)
--
. 5HP Aqua Boost Swim Pump
. HydroClean Plus Filtration Pump
. High Flow Aquastream Swim Jets (1 Buoyancy Jet) 2
. Total Stainless Steel Hydro Flow Hydrotherapy Jets 19

Electronics
. 4 KW Heater - Optional upgrade to 2nd 4kw Heater
--
. Isolation Valves and a programmable Filtration Timer

Fitness
. Aquacord Anchor for Body Board and Tether
--

Standard Features
. Automatic Chemical Feeder
--
. Galvanized Steel Support Package
. Underwater LED Safety Lighting
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control

Warranty
. 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)
--

Cabinet
. Factory Installed Frame & Everlast
--

Design
. Three Stage Acrylic Polymer Shell
--

Spa Capacity
. Seating (Persons)
--
4

Model Specifications
. Height (inches)
--
53
. Height (cm) 135
. Shell Dimensions (inches) 220x93
. Shell Dimensions (cm) 558x236
. Volume (US gallons) 2439
. Volume (Litres) 9233
. Weight Full (Lbs) 23383
. Weight Full (Kg) 10609
. Weight Empty (Lbs) 3028
. Weight Empty (Kg) 1374



UPGRADE OPTIONS
. 2 Extra LEDs & Northern Lights

. 24" Stainless Steel Exercise Bar

. 24in Stainless Exercise Bar, Swimspa Water Watch, 50 or 60 Amp GFCI with Subpanel, Deluxe Starter Kit, EZ-Ultra Pure Ozone System, Summer Cover with Tie Down, Safety Insulating Six Section Cover

. 4 Tier Aqua Step

. 48" Stainless Steel Exercise Bar

. 60 Amp GFCI Including Subpanel

. Aqua Fitness Package

. Aqua Rowing Kit

. Auxillary Heating System By-Pass Loop

. Bellagio Package DTAX: Bellagio HydroFalls, Northern Lights plus 2 LED Lights

. Black Cherry Cabinet Premium Upgrade

. Covana LEGEND Automated Cover - Slate/Platinum or Mocha/Latte

. Covana LEGEND Automated Cover - Slate/White or Mocha/White

. Covana LEGEND Automated Cover Installation

. Covana LEGEND Battery back up Pack 24V

. Covana LEGEND Secondary Escape Hatch Slate/Platinum or Mocha/Latte

. Covana LEGEND Secondary Escape Hatch Slate/White or Mocha/White

. Covana LEGEND Solar Panel - Battery Charging System 24V

. Delete Cabinet and Frame (19ft)

. Deluxe Water Care Kit with Pool Marvel

. Dream Scents on demand

. EZ-Ultra Pure Ozone System

. HydroFlex Air Therapy System

. Hydropool Surround Sound (Only Available with Cabinet)

. I Command System

. Polartec Insulated Mat

. Raise Equipment @ 8 inches - Only available on NO Cabinet / Frame Models and only on the swim end

. Replace Cabinet add Solid State frame

. Safe T Rail - Textured Black Aluminum

. Safety Insulating Six Section Cover

. Summer Cover with Tie Downs

. Two Premium HydroFall Pillows

. Upgrade to 2nd 4kw heater
