Self-Cleaning Aquatrainer 19' fX Swim Spa

Self-Cleaning Aquatrainer 19' fX Swim Spa

Self-Cleaning Aquatrainer 19' fX Swim Spa


The Self-Cleaning 19 fX AquaTrainer swim spa is a mini-pool with dual zones that deliver the most flexibility, fun and benefits for whole family.

This swim spa, with all the exercise features, has variable resistant swim current, thigh / abductor jets for lower body massage and resistance exercises along with four full body massage hydrotherapy seats plus two featured waterfall neck pillows.

The AquaTrainer 19 fX swim spa is the ultimate family pool, hot tub and aquatic all-in-one gym providing a great training center for the individual athlete who still wants to have fun with their family.

  • 1 - 4HP Evergreen Single Speed Pump
  • 2 - 5 HP Aqua Boost Swim Pumps
  • 2 - High Performance Wide Stream AquaFlo Swim Jets
  • 1 - High Flow Corestream Swim Jet
  • 2 - 4Kw Heaters
  • 1 - HydroClean Filtration Pump
  • 4 Persons Hydrotherapy Seating
  • 23 Stainless Steel Hydro Flow Hydrotherapy Jets

Shell Dimension
220" x 93"
558 cm x 236.2 cm

Height
53"
135 cm

Volume
2439 US gallons
9233 L

Weight Full
23,382 lbs
10,609 Kg

Weight Empty
3,028 lbs
1,376 Kg


HydroGuide - Self-Clean Aquatrainer 19' fX
This swim spa meets or exceeds the energy efficiency standards defined by the California Energy Commission.
Ambient Outdoor Temperature
Monthly Cost
LOW: 45F / 7C
$60.88
HIGH: 75F/24C
$27.49
North American Wattage / 100 Gallons: 15.50 W

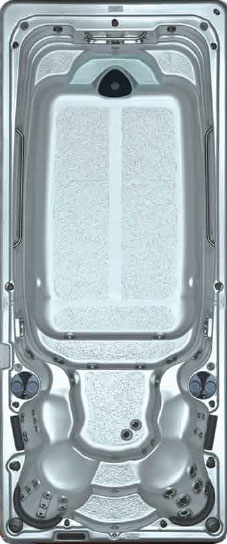

Aquatrainer 19ft Swim Spa
May not be exactly as shown.

Spec & Jet Diagram





Jets and Plumbing
. 3HP Evergreen Single Speed Pump (19Fx is a 4HP)
--
. 5HP Aqua Boost Swim Pump 2
. HydroClean Filtration Pump
. Wide Stream AquaFlo Swim Jets (1 Buoyancy Jet) 2
. Adjustable Thigh Jets 4
. Total Stainless Steel Hydro Flow Hydrotherapy Jets 23

Electronics
. 4 KW Heater(s)
--
2
. Isolation Valves and a programmable Filtration Timer

Fitness
. Aquacord Anchor for Body Board and Tether
--

Standard Features
. AquaPro3 Control
--
. Automatic Chemical Feeder
. Steel Support Package
. Premium Underwater LED Safety Lighting
. Electronic Soft Touch Controls
. Ergonomic Bucket Seating
. Generous Swimming Area & Superior Tank Design
. Insulated Swim Spa Shell
. Automatic Water Purification Ready (Ozone)
. Lower Side Wall Suctions
. High Flow Surface Skimmer with Strainer Basket
. Pressure Side 75 Sq. Ft. High Performance Filter
. Silent Air Control

Warranty
. 10 Year (Shell) / 5 Year (Surface) / 3 Year (Equipment)
--

Cabinet
. Factory Installed Frame & Everlast
--

Design
. Three Stage Acrylic Polymer Shell
--

Spa Capacity
. Seating (Persons)
--
4

Model Specifications
. Height (inches)
--
53
. Height (cm) 135
. Shell Dimensions (inches) 220x93
. Shell Dimensions (cm) 558.8x236.2
. Volume (US gallons) 2,439
. Volume (Litres) 9,233
. Weight Full (Lbs) 23383
. Weight Full (Kg) 10609
. Weight Empty (Lbs) 3028
. Weight Empty (Kg) 1374



UPGRADE OPTIONS
. 2 Extra LEDs & Northern Lights

. 24" Stainless Steel Exercise Bar

. 24in Stainless Exercise Bar, Swimspa Water Watch, 50 or 60 Amp GFCI with Subpanel, Deluxe Starter Kit, EZ-Ultra Pure Ozone System, Summer Cover with Tie Down, Safety Insulating Six Section Cover

. 4 Tier Aqua Step

. 48" Stainless Steel Exercise Bar

. 60 Amp GFCI Including Subpanel

. Aqua Fitness Package

. Aqua Rowing Kit

. Auxillary Heating System By-Pass Loop

. Bellagio Package DTAX: Bellagio HydroFalls, Northern Lights plus 2 LED Lights

. Black Cherry Cabinet Premium Upgrade

. Covana LEGEND Automated Cover - Slate/Platinum or Mocha/Latte

. Covana LEGEND Automated Cover - Slate/White or Mocha/White

. Covana LEGEND Automated Cover Installation

. Covana LEGEND Battery back up Pack 24V

. Covana LEGEND Secondary Escape Hatch Slate/Platinum or Mocha/Latte

. Covana LEGEND Secondary Escape Hatch Slate/White or Mocha/White

. Covana LEGEND Solar Panel - Battery Charging System 24V

. Delete Cabinet and Frame (19ft)

. Deluxe Water Care Kit with Pool Marvel

. Dream Scents on demand

. EZ-Ultra Pure Ozone System

. HydroFlex Air Therapy System

. Hydropool Surround Sound (Only Available with Cabinet)

. I Command System

. Polartec Insulated Mat

. Raise Equipment @ 8 inches - Only available on NO Cabinet / Frame Models and only on the swim end

. Replace AquaPro with Aquaflex Control

. Replace Cabinet add Solid State frame

. Safe T Rail - Textured Black Aluminum

. Safety Insulating Six Section Cover

. Summer Cover with Tie Downs

. Two Premium HydroFall Pillows
